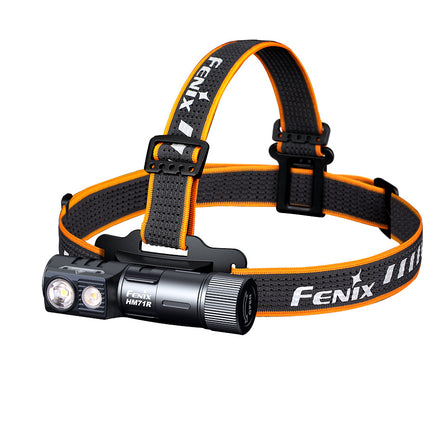

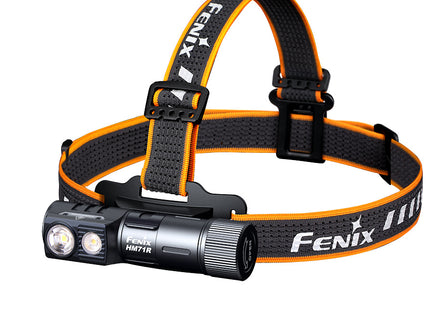

Fenix HM71R Headlamp Torch 2700 Lumens

Fenix HM71R is a versatile, rugged 2700 lumen rechargeable powerhouse of a headlamp designed for heavy duty industrial environments. All that power doesn't come at the expense of subtlety however, with 5, 50 and 200 lumen modes on hand for close work.

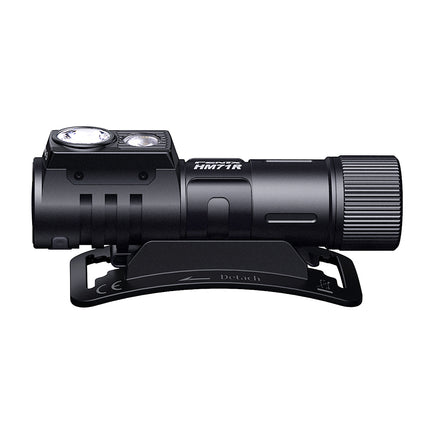

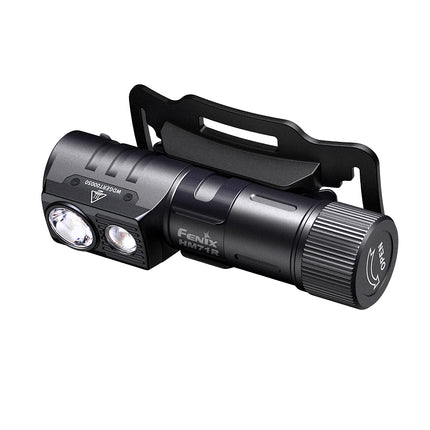

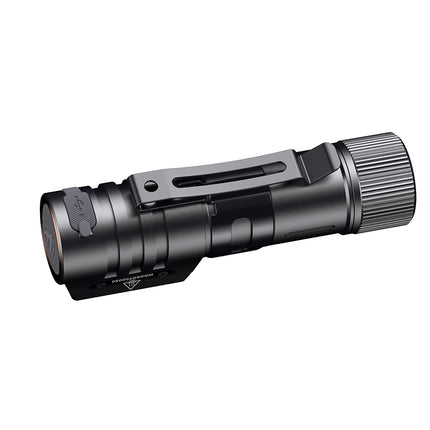

HM71R converts to a right angle torch simply by snapping it out of its headlamp base. In this mode the lamp can free stand, be attached by its powerful magnetic tail cap or clipped to a pocket.

The 5000mAh 21700 battery is charged via a 2 Amp USB-C socket in the lamp head, and easily replaced with a spare, adding further to the versatility of this hybrid industrial light source.

• Features Luminus SFT70 and SST20 LED's
• 2700 Max lumen output
• Uses 1 x Fenix ARB-L21-5000 battery (Included)

Fenix HM71R performance:

Low: 50 lumens (48 hrs) - 27m beam
Med: 200 lumens (16 hrs) - 52m beam
High 800 lumens (5 hrs total) - 104m beam
Turbo: 2700 lumens (3 hrs total inc temperature and battery level step downs) - 230m beam

Flood beam:

Reading: 5 lumens (400 hrs) 5m beam
Low: 50 lumens (48 hrs) 14m beam
Med: 200 lumens (16 hrs) 30m beam
High: 500 lumens (8 hrs total step inc downs) 47m beam

Fenix tested run times at each output level are achieved by switching the light on and letting it run uninterrupted until the battery is drained as per the ANSI standard. Re setting the torch to a higher power level during operation will reduce these run times.

Fenix HM71R other features:

* Constructed from high grade industrial components
* Large, silicone covered side switch, ideal for gloved hands
* Operating tempearature: - 35 to + 45c
* Tough stainless steel head unit
* Durable A6061-T6 aluminium body
* HA111 hard-anodized finish
* IP68 waterproof - 2m depth for 4 hours
* Impact resistant - 2m
* Digital power regulation
* LED battery status/ charge indicator below switch cover
* Overheat protection at 65c
* Spotlight memory circuit activates at last used brightness level

Fenix HM71R operation:

On/off

Press and hold the switch for 0.5 seconds to turn on/off the lamp.
Mode Switching

With the lamp switched off, press and hold the switch for 0.5 seconds to enter Spotlight mode, or double click the switch to enter Floodlight mode.
With the lamp switched on, press and hold the switch for 1.2 seconds to enter the other mode.

Output Selection:

In Spotlight mode, single click the switch to cycle through Low→Med→High→Turbo

In Floodlight mode, single click the switch to cycle through Read→Low→Med→High.

Lock/Unlock

Lock: When the lamp is switched off, press and hold the switch for 3 seconds, the lamp will blink 4 times on Read mode to indicate locked status.

Unlock: When the lamp is locked, press and hold the switch for 3 seconds, the lamp will be activated with 4 one-second Read mode blinks and activate on Read mode.

In locked status, clicking the switch will activate 4 one-second blinks on Read mode to indicate the lamp is locked.

Intelligent Memory Circuit

The headlamp memorizes the last selected output of Spotlight mode. When turned on again the previously used output of Spotlight mode will be recalled. Floodlight mode is entered every time at Read mode.

* If turning off the lamp in Turbo of the Spotlight mode, When turned on again the High output level of Spotlight mode will always be recalled.

Box contents

Retail packaged Fenix HM71R Rechargeable LED Headlamp
Fenix ARB-L21-5000 v2 Battery
USB-C Charge Lead
Spare O-ring
Warranty Card
User manual
